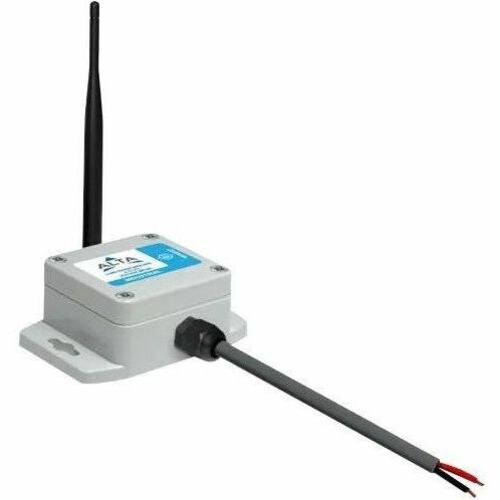

Monnit Industrial Wireless 0-10 VDC Voltage Meter

The ALTA Wireless Voltage Meter measures DC voltage up to 5V or 10V on user specified intervals.

Key Features

• Measurement Range: 0 to 5 VDC or 0 to 10 VDC
• Resolution: 1 mV
• Accuracy:
• Uncalibrated: ± 2.0% of reading ± 0.002 VDC
• Calibrated: ± 0.5% of reading ± 0.002 VDC
• Configurable thresholds for critical condition monitoring

Principles of Operation

The ALTA Wireless 5 and 10 VDC Voltage Meter measures the single-ended DC voltage across its two leads based on a user-configurable time interval or Heartbeat. On every Heartbeat, the sensor converts the analog voltage signal to a digital voltage measurement. This measurement is then sent to the gateway, making the data available in iMonnit or another approved data service.

The ALTA 5 and 10 VDC Voltage Meter can be calibrated for improved accuracy. Also, remember to remove any active voltages from the measurement leads when replacing batteries or performing other maintenance.
